SMISOL® Clim Platinum
The climate specialist.
Applications
- Air conditioning
- Refrigerant gas transportation (R32, R410A, R407, …).
Advantages of the product
Non-flammable sheat
Class BL-s1-d0 compliant
Suitable for areas with high annual solar radiation. At the end of the exposure test, the sample did not show any signs of degradation
Polyethylene closed cell expanded foam with average water vapour diffusion resistance factor “μ” above 15000. The insulating sheath is manufactured under full compliance to European Regulation EEC/EU 2037/2000
The inner surface of the copper tube is bright, clean and dry, essential characteristics of this product category normally available on the market for industrial use.
Extremely low eccentricity values, a very important feature for jointing operations.
The production process ensures absolute adherence of the insulating sheath to the outside of the copper tube wall, so as to avoid the formation of gaps that would degrade insulating the thermal insulation performance.
Main features

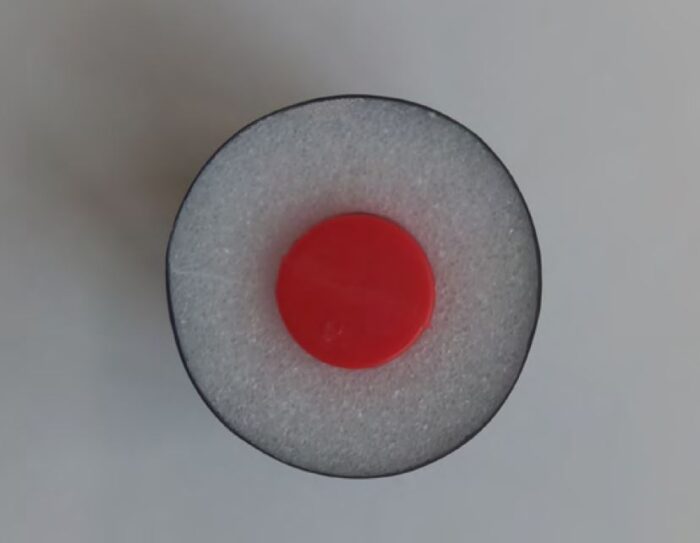

This copper tube is manufactured according to EN 12735-1 and is pre-insulated in closed cell expanded polyethylene where the cells are of regular size and evenly distributed (compliant to EN ISO 1578). It is distributed in coils. The copper tube diameter is expressed in inches, as required by standard EN 12735-1. The insulation sheath is manufactured in full compliance with European Regulation EEC/EU 2037/2000 that enforces the use of insulating expanded foam sheaths devoid of CFCs and HCFCs which are harmful to health and the environment. The thickness of the sheath is designed to satisfy the various requirements of this application area. Given the particular application field, special attention is reserved for the external protective polyethylene film designed to prevent the formation of condensation on the outer wall of the product.
SMISOL® Clim Platinum is also characterised by an extremely low eccentricity values, a very important feature for flaring operations.
Sheath characteristics
- Thermal conductivity: ≤0,038 W/m °K at 40°C.
- Average value of the water vapour diffusion resistance factor “μ” above 15000. (EN 13469)
- Average sheath density: 30 kg/m³.
- Free of ammonia residues.
- Excellent resistance to external chemical agents
- Class BL-s1-d0 compliant pursuant to EN 13501-1
- Free of CFCs and HCFCs (Reg. EEC/EU 2037/2000).
- Colouring of the outer film “Silver grey”.
- Superior UV resistance.
- Halogen-free flame retardant.
Internal surface
The inner surface of the copper tube is bright, clean and dry, essential characteristics of this product category normally available on the market for industrial use. This particularity allows for the achievement of an integrated system with the terminal units of the plant. The particular internal factory cleanliness of SMISOL® Clim Platinum material is safeguarded by fitting terminal sealing stoppers at production.
External protection
Polyethylene closed cell expanded foam with average water vapour diffusion resistance factor “μ” above 15000. The insulating sheath is manufactured under full compliance to European Regulation EEC/EU 2037/2000 which enforces the use of expanded foam insulation sheaths devoid of CFCs and HCFCs which are harmful to health and the environment and have class BL-s1-d0 compliant pursuant to EN 13501-1
The outer polyethylene film has a darker pigment than the traditional white to counter the PE crystallisation process. In addition, normal anti-UV additives tend to degrade the flame retardant treatment necessary for the product. In order to avoid this drawback, the SMISOL ® Clim Platinum sheath contains an environmentally friendly halogen-free flame retardant that does not counteract the anti-UV action.
Tests conducted according to ASTM G-155 (accelerated ageing) confirm that SMISOL ® Clim Platinum is suitable for areas with high annual solar radiation. At the end of the exposure test, the sample did not show any signs of degradation.

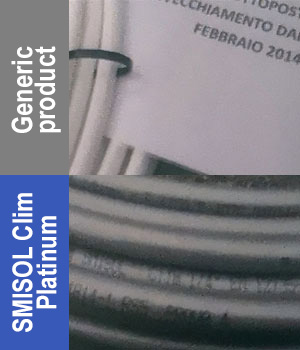

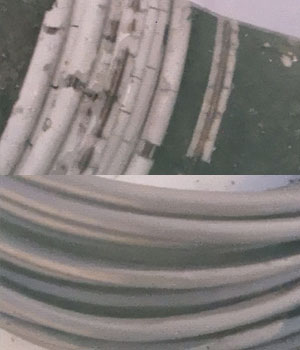

Natural aging test
Smisol Clim Platinum vs. other product at the passage of the years.
Scope of supply
Seamless, drawn copper tube, produced in accordance with EN 12735-1, R220 annealed physical status, phosphorised Cu DHP (Cu + Ag : 99.90% min. – P: 0.015÷0.040%) according to EN 1412, cleaning treatment of the internal surface of the tube in line with with EN 12735-1 e ASTM B280 with soluble residue of less than 0.38 mg/dm2, shiny aspect of internal surface, indelible labelling every 60 cm with punching of the external surface of the copper tube, covered at the production stage with a PE-LD closed cell expansion insulation, white RAL 9010 colour, heat conductivity λ ≤ 0,038 W/mk, protected by antiUV PE film in silver grey colour, average value of the water vapour diffusion resistance factor “μ” above 15000, ink labelling on the external surface of the insulation with progressive indication of the measurement in metres with SMISOL® Clim Platinum label, Resistance to fire is class BL-s1-d0, capped at the ends.
