GELO®
Safe and professional
Copper tubing for industrial gases, refrigerants and vacuum. Complies with EN 12735-1, available in 5 m rods (R290) with sealed ends and guaranteed traceability. High degree of internal cleanliness due to patented process. Suitable for high-pressure systems. Manufactured according to PED 2014/68/EU and ISO 9001 quality system.
Reliability and purity for large-scale ACR systems
Complying with EN 12735-1, it is ideal for air conditioning and refrigeration systems with refrigerant gases (R32, R410A, R407C...). The shiny, clean and dry inner surface, with soluble residues < 0.38 mg/dm², is ensured by a dedicated production process and end sealing already in the manufacturing stage.
Conditioning
Certified internal cleaning for high-performance applications
Glossy, clean and dry inner surface obtained by patented processes, ideal for conveying industrial gases, refrigerants and vacuum. Compliant with EN 12735-1, it ensures high performance even in high-pressure systems, with excellent workability.
Internal cleaning
Particularly low eccentricity values

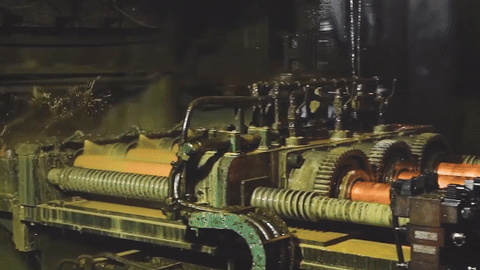

A low eccentricity value is extremely important in splicing and cartoning processes. The Pellegrino Pass rolling process ensures extremely low eccentricity values that are controlled with precise measurements on the line.
Low eccentricity
Key Features
SCT offers a full range of copper pipes for both the plumbing and industrial sectors. SCT pipes are manufactured to the highest quality standards, in full compliance with customer standards and specifications. In order to clearly distinguish the technical applications for which certain products are specifically intended, the Gelo brand was specially introduced, representing a response to the demands of two extremely specialized sectors such as refrigeration and air conditioning. Gelo copper tubes have a high degree of internal cleanliness and are specially designed for conveying industrial gases, refrigerants and for vacuum distribution. They can be used in high-pressure systems and have excellent workability characteristics. By means of special patented production processes, the internal cleanliness of the tubing is ensured to meet the special requirements of the various fields of application for which the products are intended. Frost is manufactured according to EN 12735-1.
Specifications
Gelo is produced in 5-m rods (hard physical state R290) in millimeter and inch versions; it has both ends capped in order to ensure that internal cleanliness is maintained, and each pipe is identified by a specific numbering that identifies the production batch and ensures traceability. The use of Gelo pipes presupposes careful evaluation of the intended use, as well as the environmental and functional conditions in which the product will be installed. This assessment must be made at the design stage and by competent personnel: the proper use and operation of piping requires installation in full compliance with current regulations and according to the good rule of art. The production of Gelo is carried out following the rules defined by an ISO 9001 approved Quality Management System, in line with the European PED Directive 2014/68/EU.
Specifications
Cu DHP (Cu: 99.9% min. P:0.015÷0.040%) according to EN 1412 Dimensions and tolerances, according to EN 12735-1 Hard physical state (R290) Unit load at break: R. min. ≥290 MPa (N/mm2) Percent elongation: A5 min. > 3% .
Specifications
Seamless drawn copper tube, manufactured according to EN 12735-1, hard physical state R290, phosphorus deoxidized Cu DHP (Cu + Ag: 99.90% min. - P: 0.015÷0.040%) according to EN 1412, cleaning treatment of inner tube surface according to EN 12735-1 and ASTM B280 with soluble residue less than 0.38 mg/dm2, polished appearance of inner surface, indelible marking every 60 cm by punching the outer surface of the copper tube, capped at the ends.
